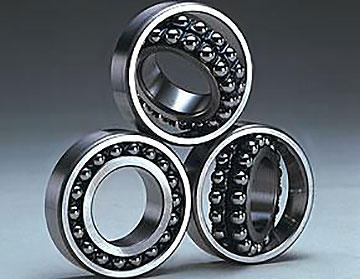

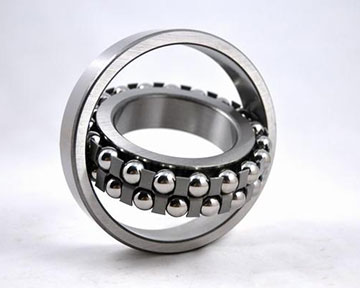

Self aligning ball bearing
BACK
DETAILED DATA

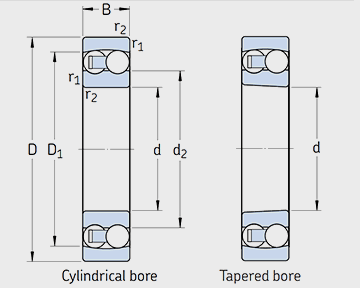

Bearing No. Dimensions (mm) Basic Load Rating (N)      Weight (kg)
ISO GOST d D B Dyn. C Stat. C0
1200 1200 10 30 9 5480 1200 0.034
1201 1201 12 32 10 5550 1250 0.040
1202 1202 15 35 11 7480 1750 0.049
1203 1203 17 40 12 7900 2020 0.073
1204 1204 20 47 14 9950 2650 0.116
1205 1205 25 52 15 12000 3300 0.140
1206 1206 30 62 16 15800 4700 0.220
1207 1207 35 72 17 15800 5080 0.320
1208 1208 40 80 18 19200 6400 0.415
1209 1209 45 85 19 21800 7320 0.465
1210 1210 50 90 20 22800 8080 0.531
1211 1211 55 100 21 26800 10000 0.705
1212 1212 60 110 22 30200 11500 0.900
1213 1213 65 120 23 31000 12500 1.150
1214 1214 70 125 24 34500 13500 1.240
1215 1215 75 130 25 38800 15200 1.390
1216 1216 80 140 26 39500 16800 1.700
1217 1217 85 150 28 48800 20500 2.060
1218 1218 90 160 30 56500 23200 2.590
1219 1219 95 170 32 63500 27000 3.100
1220 1220 100 180 34 67400 28400 3.700
1224 1224 120 215 42 117000 51000 6.770
1300 1300 10 35 11 7220 1620 0.058
1301 1301 12 37 12 9420 2120 0.067
1302 1302 15 42 13 9500 2280 0.094
1303 1303 17 47 14 12500 3180 0.130
1304 1304 20 52 15 12500 3380 0.165
1305 1305 25 62 17 17800 5050 0.255
1306 1306 30 72 19 21500 6280 0.385
1307 1307 35 80 21 25000 7950 0.510
1308 1308 40 90 23 29500 9500 0.715
1309 1309 45 100 25 38000 12800 0.955
1310 1310 50 110 27 43200 14200 1.200
1311 1311 55 120 29 51500 18200 1.600
1312 1312 60 130 31 57200 21200 1.950
1313 1313 65 140 33 61800 22800 2.420
1314 1314 70 150 35 74500 27500 3.000
1315 1315 75 160 37 79000 29800 3.550
1316 1316 80 170 39 86700 31400 4.170
1317 1317 85 180 41 97800 37800 5.000
