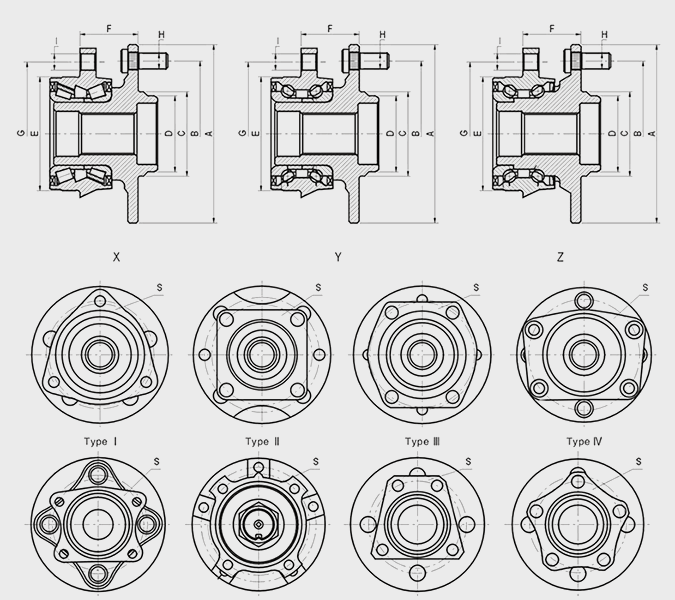

| Hub Units | Dimension(mm) | Inner Flange | out flange bolt(hole) size | tooth qty | unit type | flange | ||||||||
| screw size | bolt size | |||||||||||||
| KJ No. | Bearing No. | A | B | C | D | E | F | G | （Q'TY) | （Q'TY) | ||||
| H | I | J | K | S | ||||||||||
| KJHB3001 | 100104 | 116.8 | 98 | 58.9 | 57.9 | -- | 52 | 85 | 4xM12x1.25 | -- | 4xØ10x1.25 | 20 | X | II |
| KJHB3002 | 513017K | 125.4 | 100 | 58.32 | 57.02 | 73.4 | 44.3 | 98.5 | -- | 5xM12x1.5 | 3xØ12.7 | 33 | X | I |
| KJHB3003 | 513016K | 146 | 115 | 70.63 | 70.15 | 89.95 | 41.78 | 116 | -- | 5xM12x1.5 | 3xØ12.7 | 27 | X | I |
| KJHB3004 | 513084 | 154 | 114.3 | 72 | 71.4 | 100 | 54 | 120.65 | -- | 5x1/2-20UNF | 3xM12x1.75 | 27 | X | I |
| KJHB3005 | 52730-38102 | 148 | 114.3 | 75.9 | 66.9 | 65.9 | 59 | 100 | -- | 4xM12x1.5 | 4xM10x1.25 | -- | Y | V |
| KJHB3006 | 513074 | 139 | 114.3 | 72.8 | 71.2 | 86.8 | 37.7 | 112 | -- | 5xM12x1.5 | 4xM10x1.5 | 26 | X | II |
| KJHB3007 | 513075 | 126 | 100 | 60.7 | 56.7 | 87 | 37.3 | 112 | -- | 5xM12x1.5 | 4xM10x1.5 | 26 | X | II |
| KJHB3008 | 513011K | 125.4 | 100 | 57.73 | 57.02 | 70.99 | 41.96 | 102 | -- | 5xM12x1.5 | 3xØ13 | 33 | X | I |
| KJHB3009 | 574566B | 135.5 | 108 | 68 | 65 | 83.5 | 43 | 103 | 4xM12x1.75 | -- | 4xM12x1.75 | 26 | Z | III |
| KJHB3010 | 574566C | 135.5 | 108 | 68 | 65 | 83.5 | 43 | 103 | 5xM12x1.75 | -- | 4xM12x1.75 | 26 | Z | III |
| KJHB3011 | BARB243823AD | 130.5 | 108 | 68 | 65 | 81 | 37 | 103 | 4xM14x1.5 | -- | 4xM12x1.5 | 26 | Z | V |
| KJHB3012 | 633293 | 116.8 | 98 | 58.9 | 57.9 | -- | 52 | 85 | 4xM12x1.25 | -- | 4xØ10x1.25 | -- | X | II |
| KJHB3013 | 801143D | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | Y | V |
| KJHB3014 | 513100 | 139 | 108 | 70.92 | 63.1 | 85.44 | 36.2 | 112 | -- | 5xM12x1.5 | 3xM12x1.75 | 26 | X | I |
| KJHB3015 | 513087 | 145.5 | 115 | 70.61 | 70.1 | -- | 42 | 116 | -- | 5xM12x1.5 | 3xØ14 | 33 | X | I |
| KJHB3016 | 513138 | 128 | 100 | 60.9 | 56.9 | 87 | 37.6 | 112 | -- | 5xM12x1.5 | 3xM12x1.75 | 26 | X | I |
| KJHB3017 | 513121 | 145.8 | 115 | 70.6 | 70.1 | -- | 41.9 | 116 | -- | 5xM12x1.5 | 3xM12x1.75 | 33 | X | I |
| KJHB3018 | 513044 | 144.5 | 115 | 70.61 | 70.1 | 91.06 | 44.85 | 146.05 | -- | 5xM12x1.5 | 4xM12x1.5 | 33 | X | V |
| KJHB3019 | 513089 | 146 | 114.3 | 73.3 | 71.4 | 91.3 | 42.1 | 116 | -- | 5xM12x1.5 | 3xM12x1.75 | 33 | X | I |
| KJHB3020 | 513061 | 144.5 | 120.65 | 70.63 | 71.14 | 91.95 | 47.24 | 120.65 | -- | 5xM12x1.5 | 3xM12x1.75 | 27 | Z | I |
| KJHB3021 | 30BWK16 | 151.8 | 114.3 | 62 | 60 | -- | 75 | 99 | 5xM12x1.5 | -- | 4xØ10.5 | -- | Y | V |
| KJHB3022 | 3NDF026 | 135 | 100 | 54.95 | 53.92 | 73.9 | 54.5 | -- | -- | 4xM12x1.5 | 4xM10x1.25 | -- | Z | V |
| KJHB3023 | 801106 | 139 | 120 | 79 | 74 | 90 | 61.1 | 106 | 5xM12x1.5 | -- | 4xM12x1.5 | -- | Y | VI |
| KJHB3024 | 801344D | 131 | 112 | 68 | 57 | -- | 70.15 | 95 | 5xM14x1.5 | -- | 5xØ10.8 | -- | Z | V |
| KJHB3025 | 512001ABS | 138 | -- | 56.8 | 57.3 | 60.9 | 65 | -- | -- | 5xM12x1.5 | 4xØ10.8 | -- | X | VII |
| KJHB3026 | 513156 | 139 | -- | 63.1 | 70.8 | 89.5 | 41.1 | -- | -- | 5xM12x1.5 | 3xM12x1.75 | 26 | X | I |
| KJHB3027 | 515001ABS | 182.5 | 140 | 77.6 | 78.3 | 99.3 | 56.7 | -- | -- | 6xM14x1.5 | 3xØ14.5 | 33 | X | I |
| KJHB3028 | 515006 | 172 | -- | 77.6 | 78 | 99.3 | -- | 50.8 | -- | 5x1/2-20UNF | 3xM14x1.5 | 33 | X | I |
